DOOR SYSTEMS
Style, Performance, Functionality
Your choice of doors is a decision that's as important as any when planning a residential project. A discerning homeowner wants doors that are beautiful, durable and energy efficient. And, as we become more conscious of our responsibility to protect the environment, doors made with sustainable materials make the top of the list more often than those that aren't. REHAU door designs meet all of these criteria while offering an extensive variety of styles and functionalities.

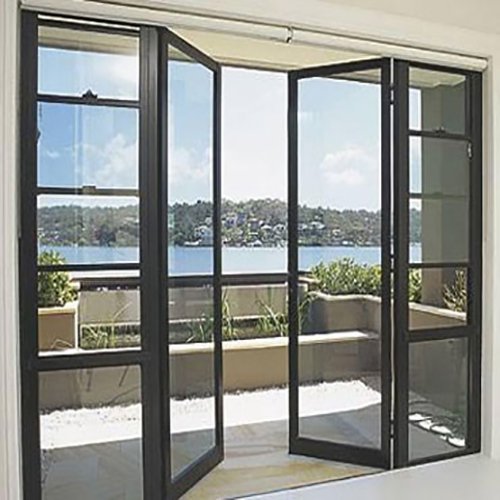

Swing Doors
Go With a Classic: Beautiful, Efficient, Durable Swing Doors
Swing doors are offered as a single sash creating a beautiful main entrance or as dual sash, also referred to as French doors, connecting the indoors with the outdoors. These versatile doors can be used for deck or balcony access.
Swing doors can also be used as a room divider, either in place of a wall to create a dramatic effect or to add an open and airy feel to an existing wall. Commonly used for an entrance to a living room or study, they are a popular choice among designers as an attractive alternative to sliding doors.
| Construction Dept | 60mm |
| Chambers | 3 Chambers |
| Thermal Insulation | Uf = 1.6W/m2K (EN12412-2) |
| Sound Insulation | Up to 40dB (AS1191-1985) |
| Air Tightness | Class 4 |
| Water Tightness | Class 9 A / E 750 |
| Glazing Capacity | 3mm ~ 36mm |
Lift & Slide Doors
The Biggest Opening Possible
This design offers a unique combination of oversized openings, compression sealed technology for high energy performance and effortless sash operation all in a traditional sliding panel aesthetic.
Lift & Slide door make large glazing areas, sunny rooms and a comfortable living quality. even floor-to-ceiling doors with a width up to 10 meters can be realized. The design of the profile and the threshold provide a harmonious overall impression of the door.
This door gives best protection against rain and water. Even wind up to 115 km/h and heavy rain is not an issue for this system. Even during winter it stays warm and comfortable inside. This is achieved by the special construction details as the 4 chamber technique and the thermal broken threshold.
| Construction Dept | 70mm |
| Chambers | 4 Chambers |
| Thermal Insulation | Uf = 1.0W/m2K/td> (EN12412-2) |
| Sound Insulation | Up to 42dB (DINEN 20140) |
| Air Tightness | Class 4 (DINEN 12207) |
| Water Tightness | Class 9 A (DINEN 12208) |
| Glazing Capacity | 8mm ~ 43mm |
Sliding Doors
Accentuate Open Plan Living

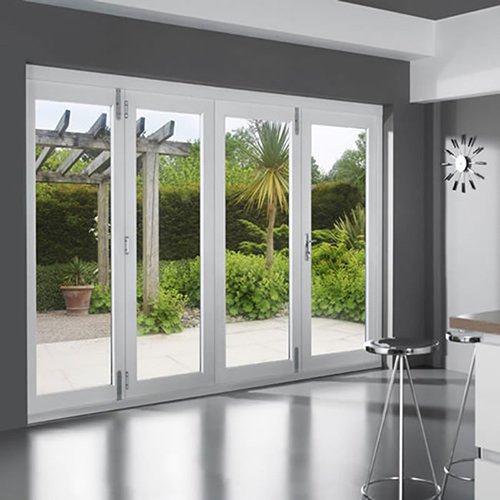

Slide-fold door design can be an alternative to hinged and sliding patio doors, but can be used to accentuate open plan living. The beauty of a slide-fold door is that the multiple panels fold to create an opening that can be as large as the size of the door frame.
| Construction Dept | 60mm |
| Chambers | 3 Chambers |
| Thermal Insulation | Uf = 1.6W/m2K (EN12412-2) |
| Sound Insulation | Up to 40dB (AS1191-1985) |
| Air Tightness | Class 4 |
| Water Tightness | Class 9 A / E 750 |
| Glazing Capacity | 3mm ~ 36mm |
Sliding Doors
Anything but Ordinary
Take what comes to mind when you think of patio doors and put it aside. Designed to open up the spaces you live in, our sliding patio door designs are customizable, versatile and work equally well as the perfect solution for your replacement project, a new addition or new home construction.
Tested to the industry's most stringent standards, REHAU door designs have high performance ratings for coastal and acoustical applications. Our designs meet AS2047 structural, air and water standardards.
| Construction Dept | 60/88/108mm |
| Chambers | Up to 3 Chambers |
| Thermal Insulation | 2.5 W/m2K |
| Sound Insulation | Up to 32 dB |
| Air Tightness | Up to Class 3 |
| Water Tightness | Class 4A |
| Glazing Capacity | 3mm ~ 24mm |
